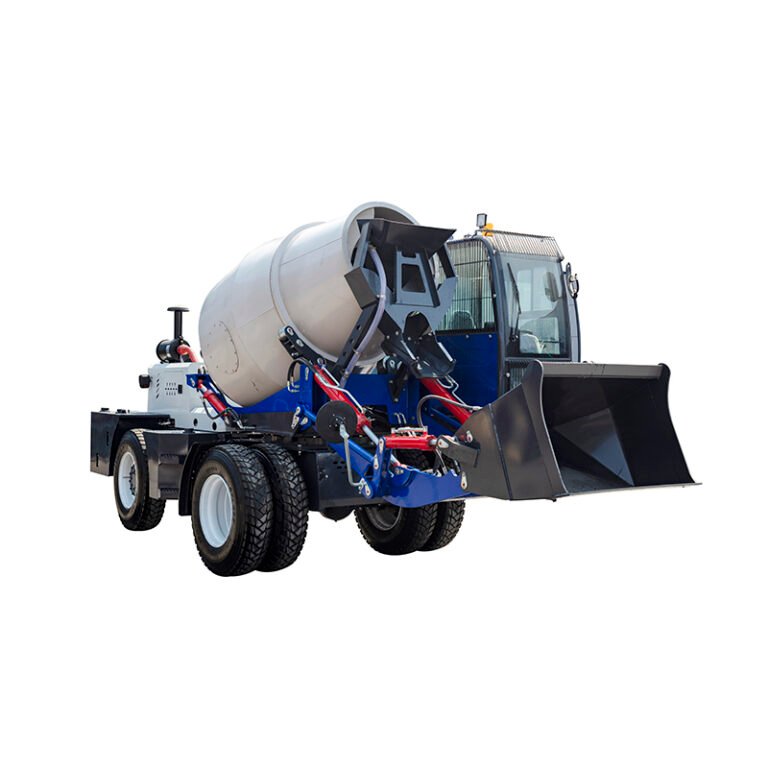

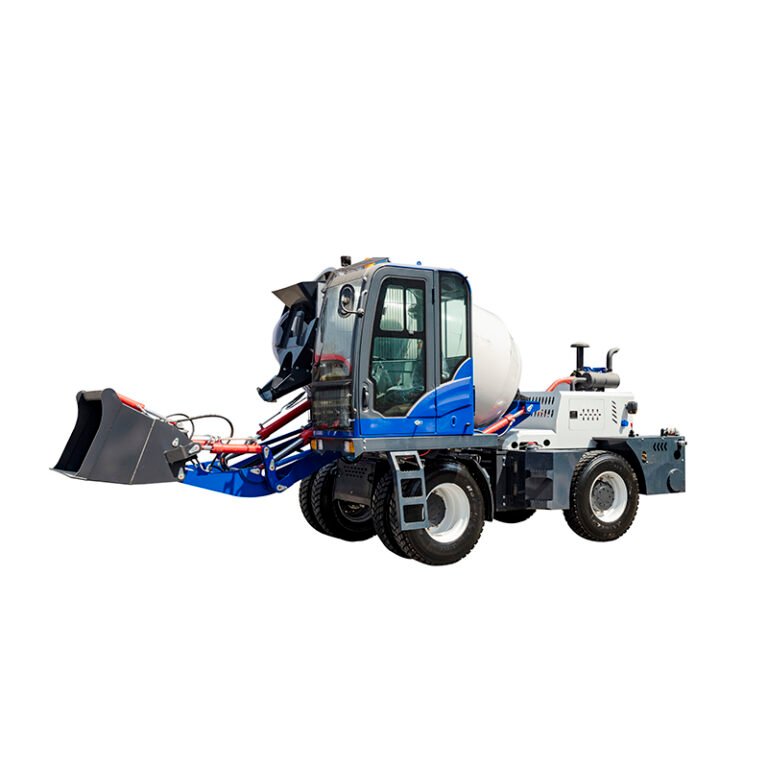

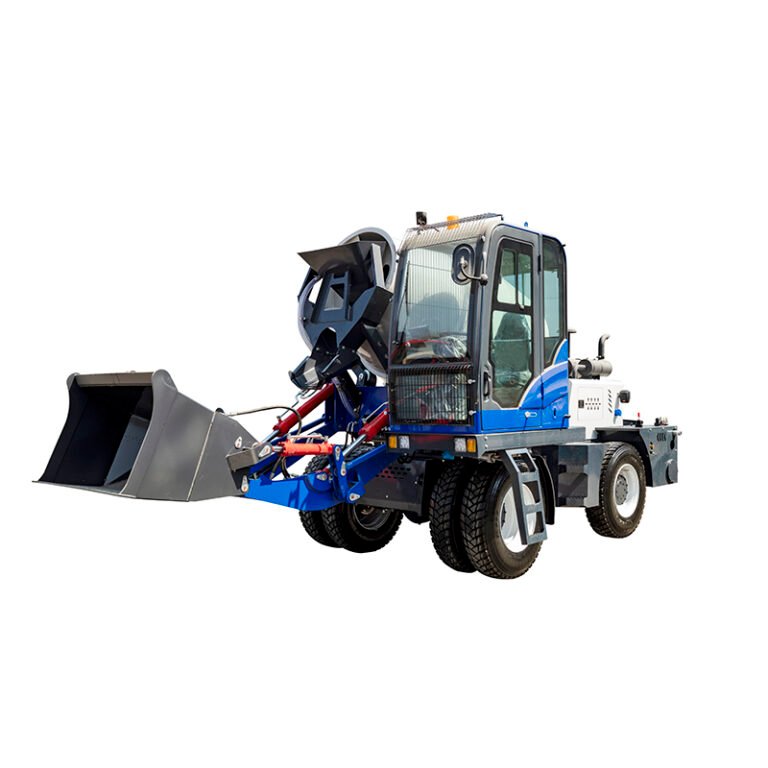

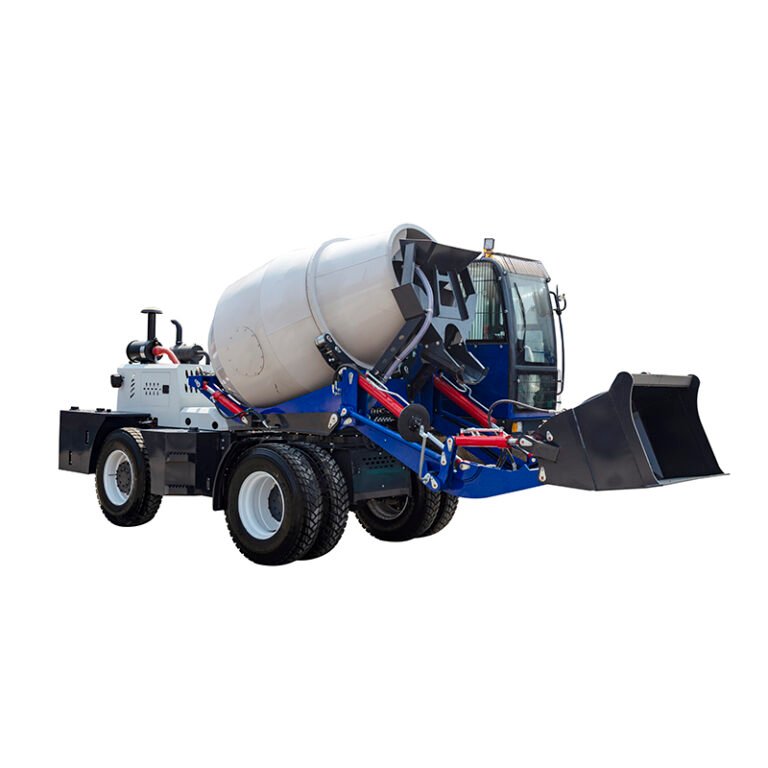

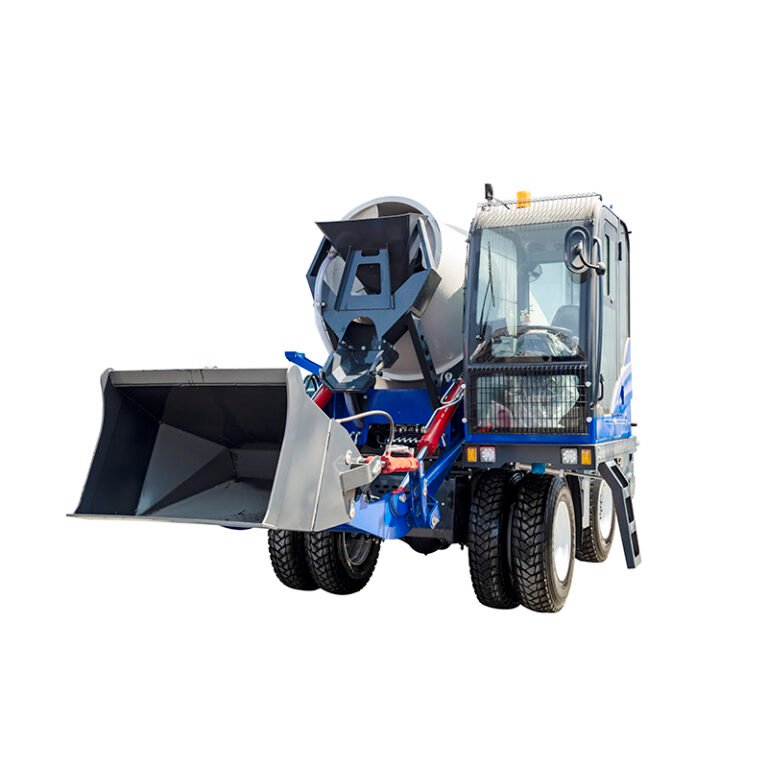

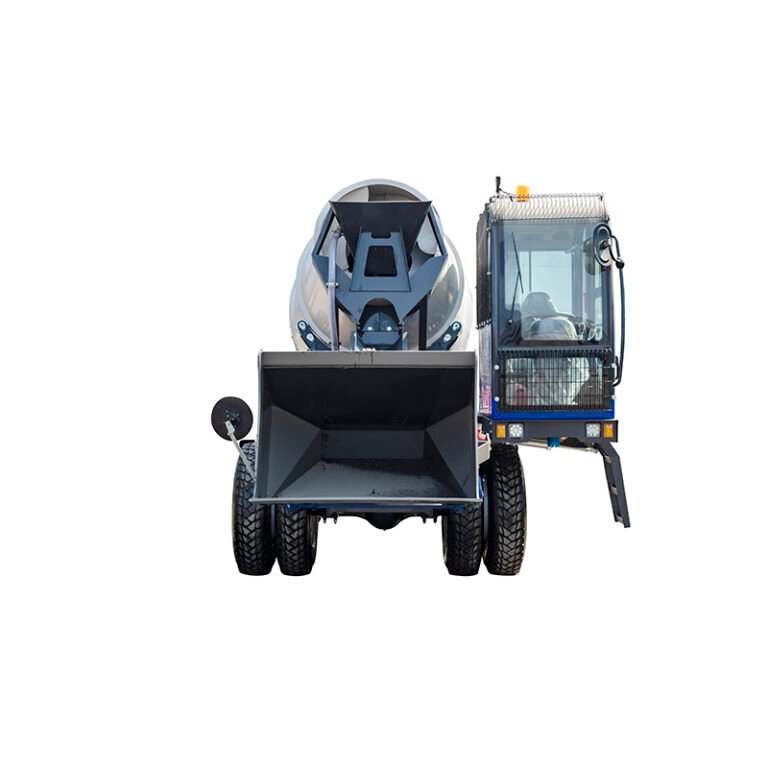

Automatic Concrete Mixer Truck High Efficiency On Site Mixing and Transport Solution

Automatic Concrete Mixer Truck:

Efficiency
High traveling speed
Small turning radius and strong adaptability to various job sites
Short overall cycle time with flexible movement

Safety
Reliable braking system
Safe and comfortable operating conditions

Energy-saving and environmentally friendly initiative
Excellent fuel and energy savings, saving 25% under the same configuration
Low noise level

Reliability and durability
Reliable drive system
Upgraded hydraulic system
New concept electrical system design
Optimally designed structural components tested for 200,000 fatigue cycles

Comfort and convenience
Cabin space increased by 15%
Low noise, shockproof and dustproof protection
Side-opening engine hood for easy maintenance
Ergonomic control lever

Products Description

ConfigurationsCH-4000ZJ
Mixing SystemOutput Capacity4m³/tank
Mixing Speed14mins/tank
Tank Rotated Speed20rpm
Mixing MaterialConcrete, mortar, etc.
Tank Rotation Angle270°
Geometrical Tank Capacity6.5m³
Tank Thickness4mm

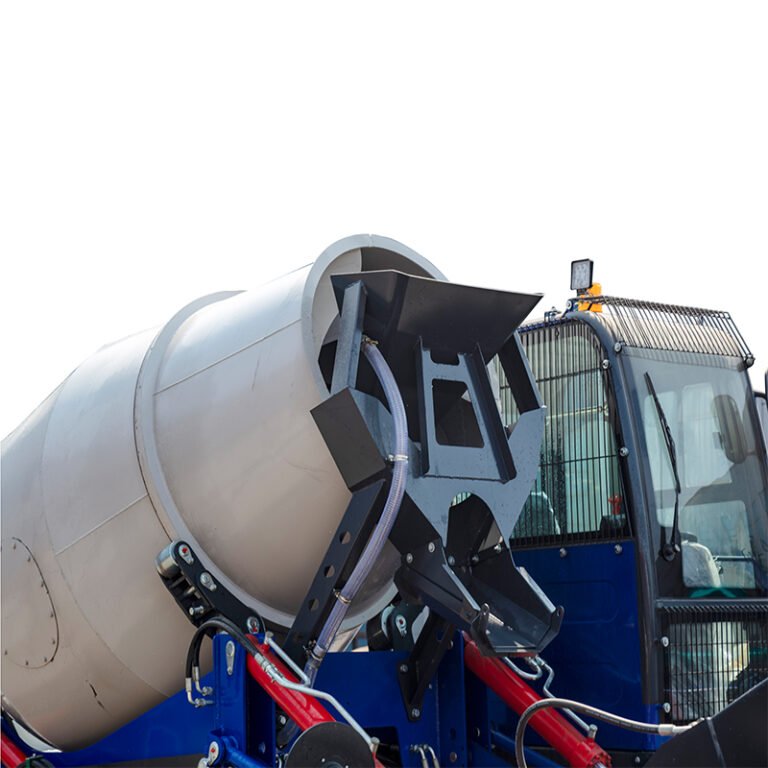

Tank StructureDouble-tapered drum with double-helical mixing screws and convex bottom

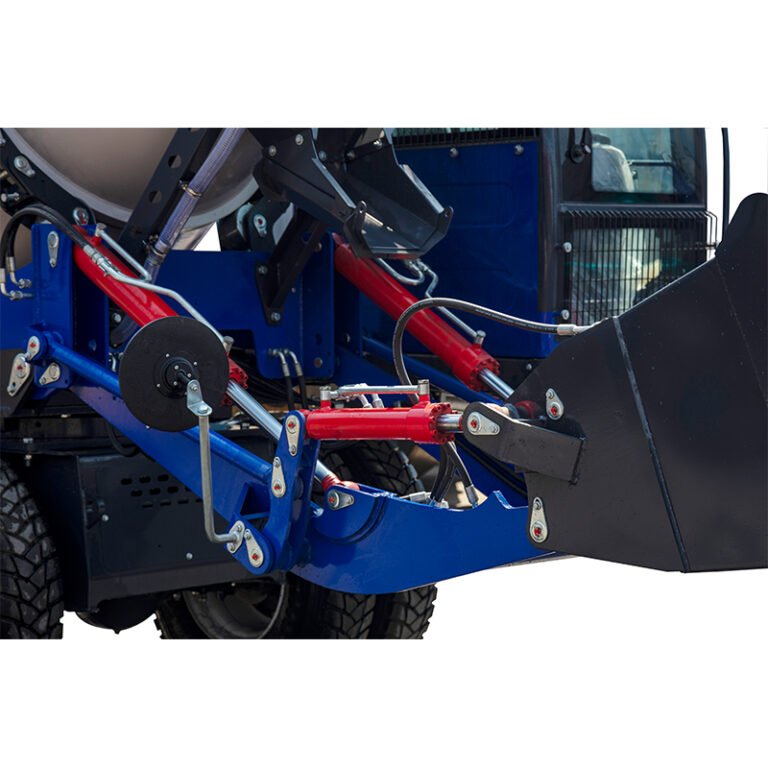

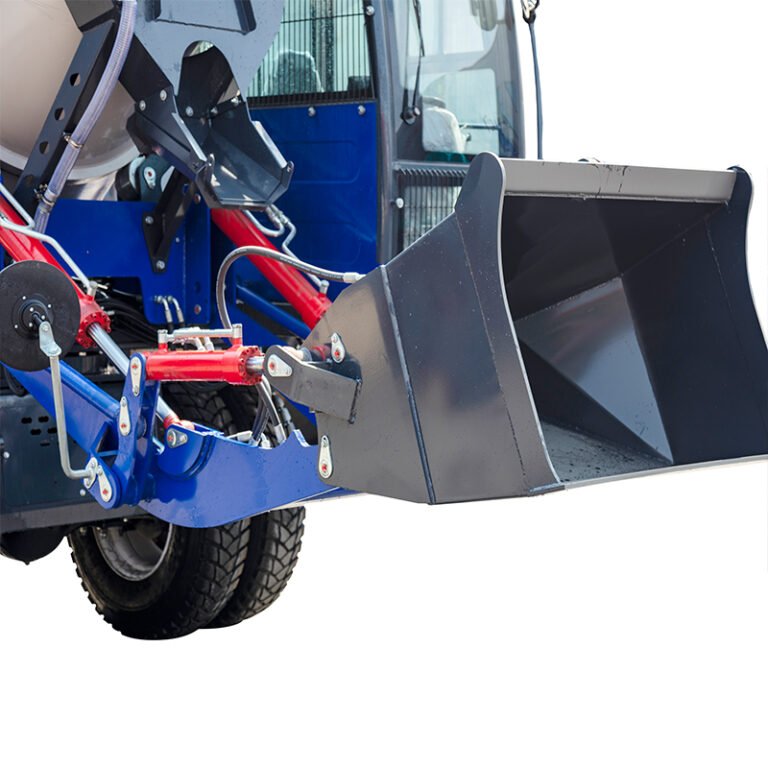

Loading SystemMax.Shovel Capacity0.7m³
Max. Arm Length 3100mm
Power ModelHydraulic control
Chassis ConfigurationsDiesel Engine91KW, YUCHAI superchargered engine
Emission StandardEuro-2
Transmission4 forward+4 reverse
JBJ-320 power shift gearbox
Max. Driving Speed35km/h
Max. Climbing Angle40°
Min. Ground Clearance300mm
CabinClosed cab, A/C, comfortable seat
Chassis StructureArticulated
AxleWheel speed reducer, special-purpose for mixer truck
Driving&Steering4-Wheel drive (4x4), hydraulic articulated steering
Wheelbase3200

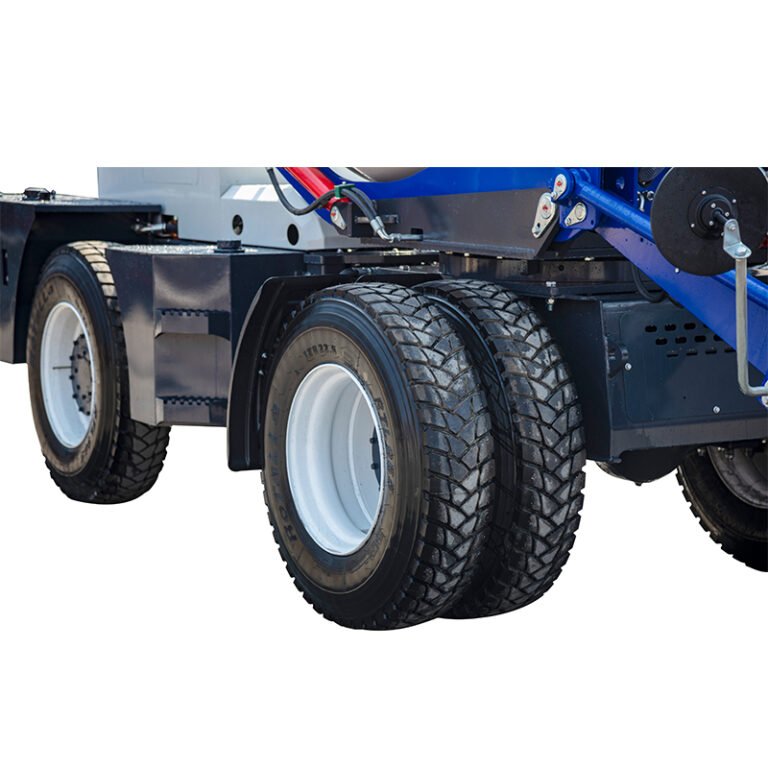

Tyre12R22.5,6 pieces
Fuel Tank Volume150L
Engine Oil Volume22L
Hydraulic SystemReducer5F-300B
MotorA2FM63
Hydraulic Oil Tank Volume150L
Water Supply SystemSupply ModeTime relay
Water PumpHydraulic water pump&electric water pump
Water Tank Volume750L
Body Color OptionCustomizable colors

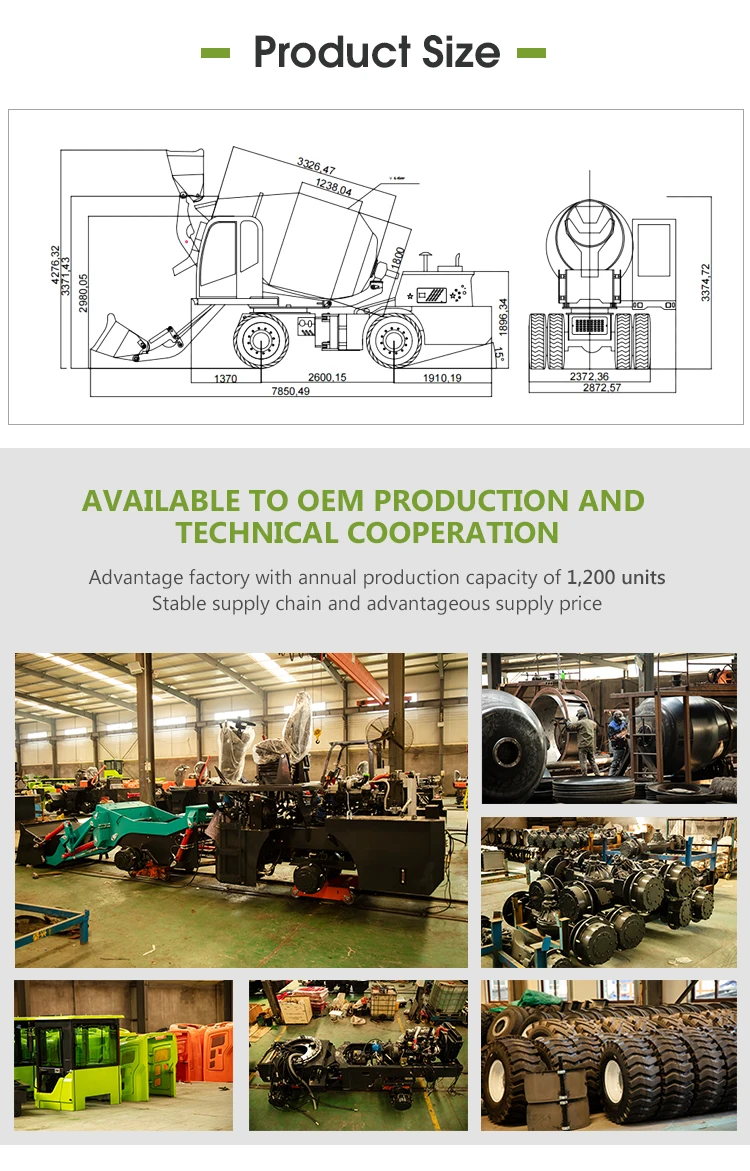

Overall Dimension7850×2872×3375mm
Weight8500kg
OEM
ODM
Delivery Time15 days
Packing&Transportation40'ft container/unit
Warranty12 months

The Automatic Concrete Mixer Truck is an efficient and advanced construction machine designed for transporting, mixing, and discharging concrete in a fully integrated process. It is widely used in modern construction engineering, especially in projects where continuous concrete supply and on-site flexibility are required.

This equipment is designed to improve construction productivity by combining multiple functions into one machine. It can automatically handle material loading, mixing, transportation, and discharging, reducing the need for additional equipment and manual labor on the job site.

Powered by a reliable system and advanced hydraulic technology, the Automatic Concrete Mixer Truck ensures stable operation with consistent mixing performance. It helps maintain uniform concrete quality during transportation, which is essential for structural strength and construction accuracy.

The machine is highly adaptable and suitable for different working environments, including remote construction areas, infrastructure projects, and urban building sites. Its strong mobility allows it to operate efficiently even in challenging or uneven terrain conditions.

With its efficient workflow and integrated design, the Automatic Concrete Mixer Truck helps contractors reduce operational costs, save time, and improve overall construction efficiency. It is widely used in residential buildings, road construction, bridges, and various infrastructure projects.

Overall, the Automatic Concrete Mixer Truck is a practical and reliable solution for modern construction needs, offering strong performance, flexibility, and cost-effective operation in one compact system.

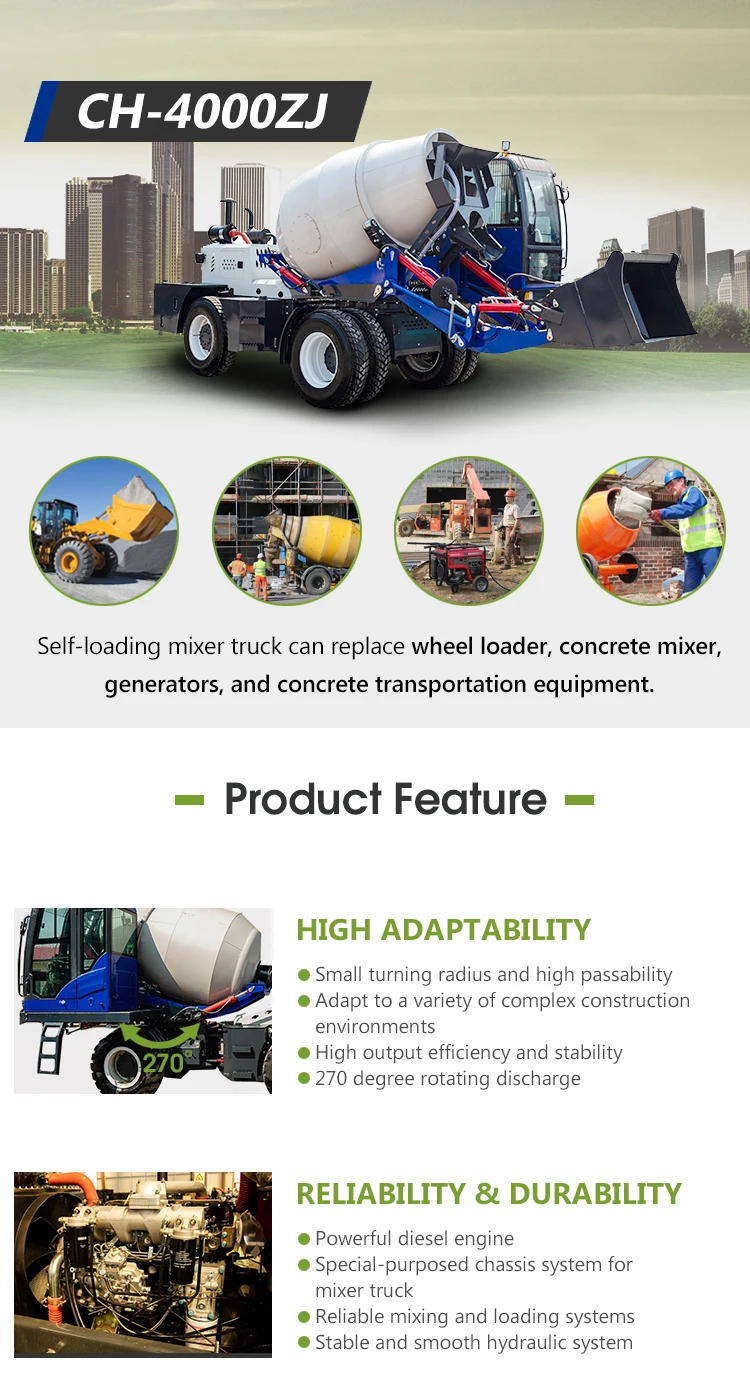

H59f5c089d0dd44c4a049a29176d0e3f0u
