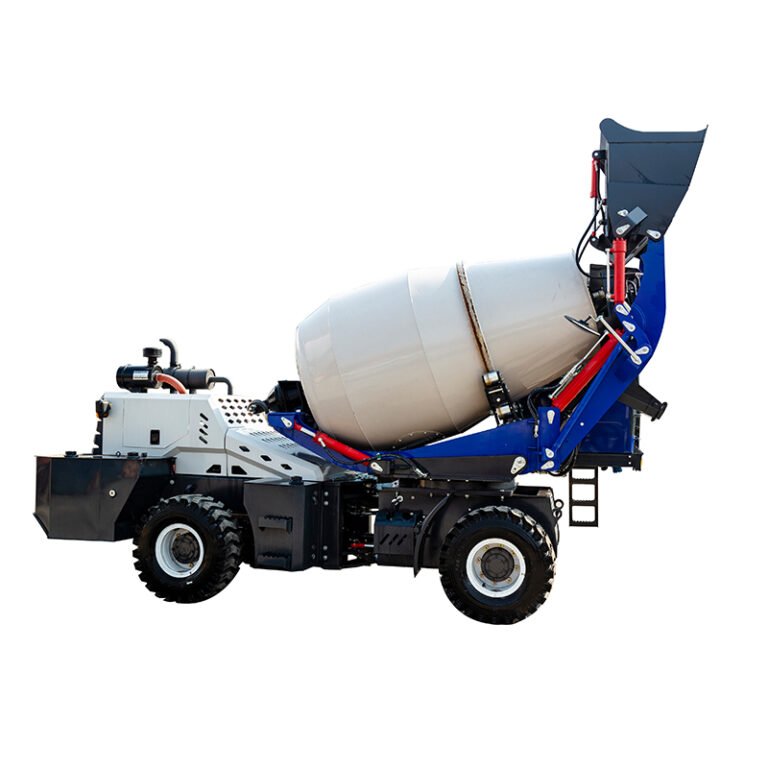

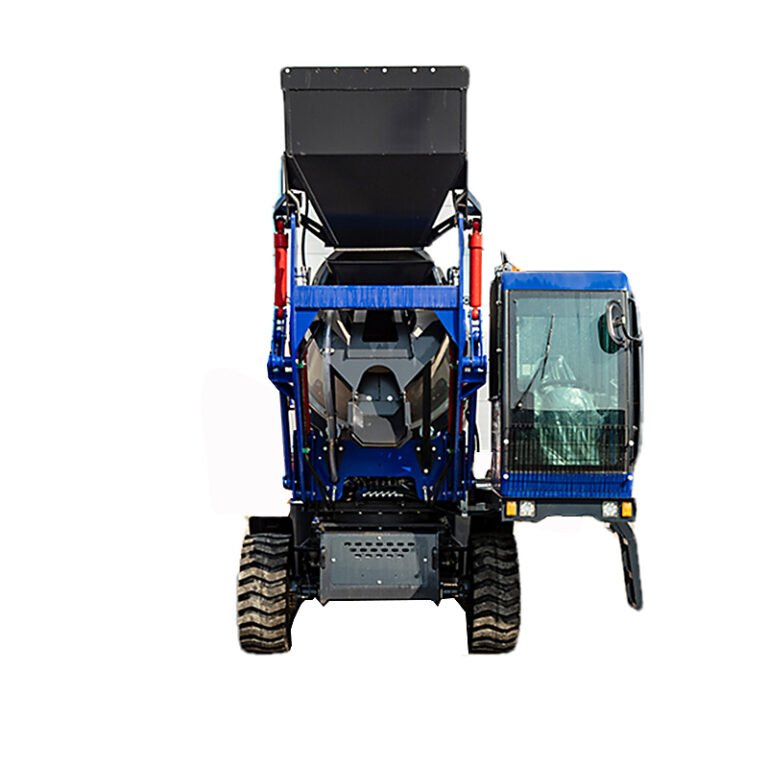

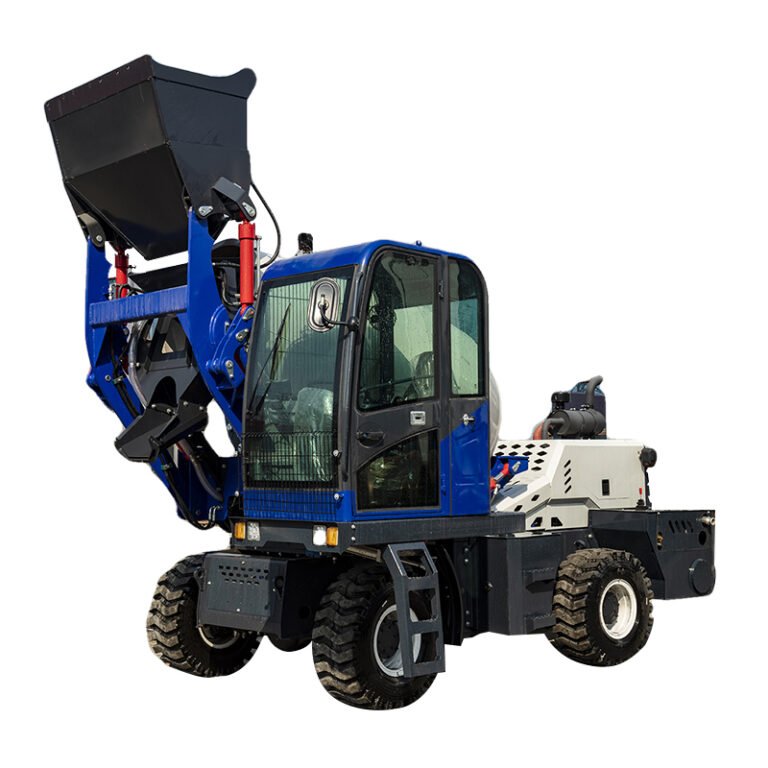

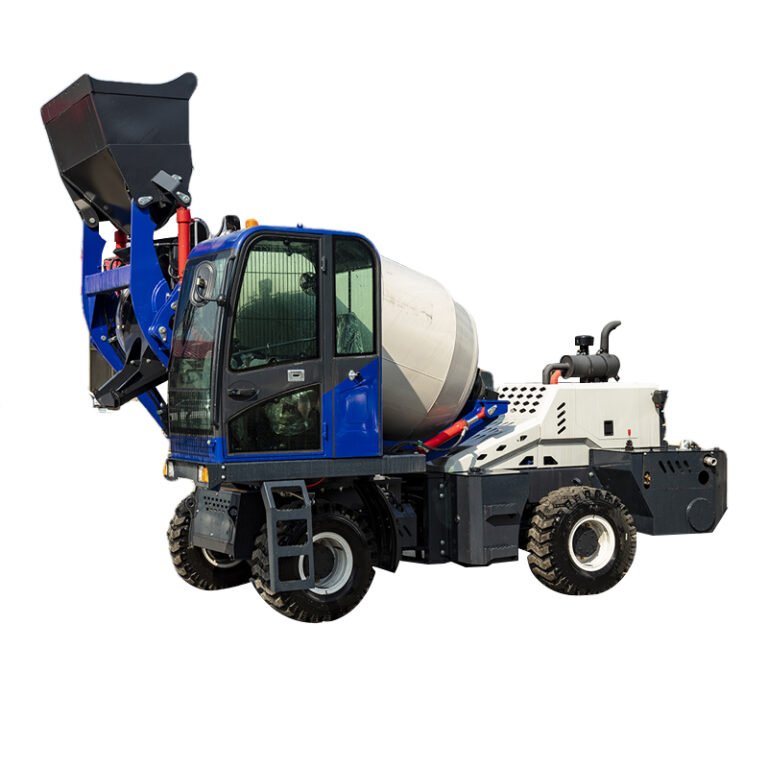

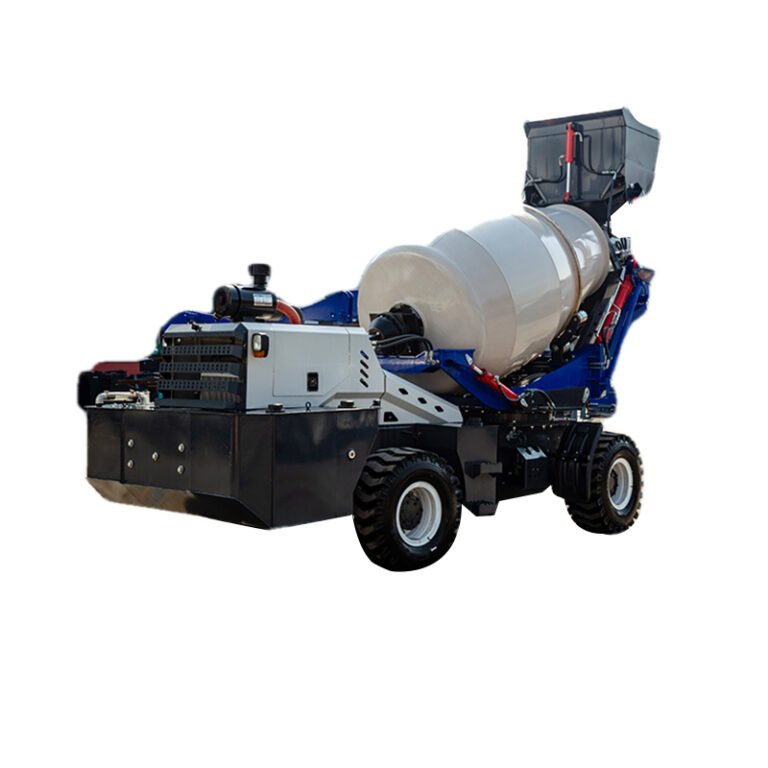

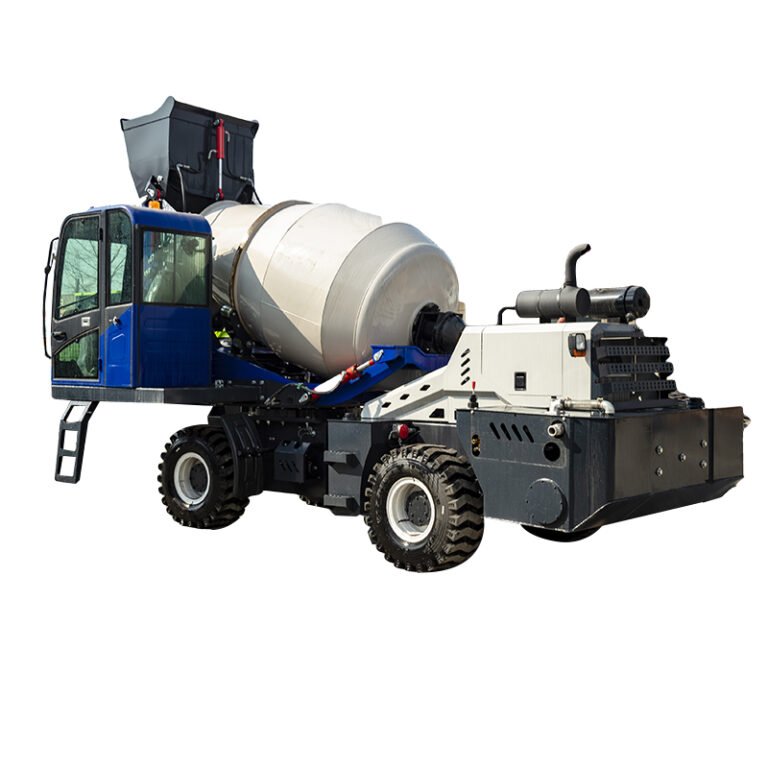

Multi-Function Efficient Concrete Mixer Cart with Self-Loading System

The Efficient Concrete Mixer Cart is a compact and versatile construction machine that integrates loading, mixing, transporting, and discharging concrete in one unit. It is designed to improve on-site efficiency, reduce labor and equipment costs, and ensure consistent concrete quality. With strong mobility and easy operation, it is ideal for small to medium construction projects, especially in remote or rough working conditions.

Products Description

ConfigurationsCH-2600ZJ
Mixing SystemOutput Capacity2.6m³/tank
Mixing Speed12mins/tank
Tank Rotated Speed20rpm
Mixing MaterialConcrete, mortar, etc.
Tank Rotation Angle270°
Geometrical Tank Capacity4.0m³
Tank Thickness4mm
Tank StructureDouble-tapered drum with double-helical mixing screws and convex bottom
Loading SystemMax.Shovel Capacity0.5m³
Max. Arm Length 2800mm
Power ModelHydraulic control

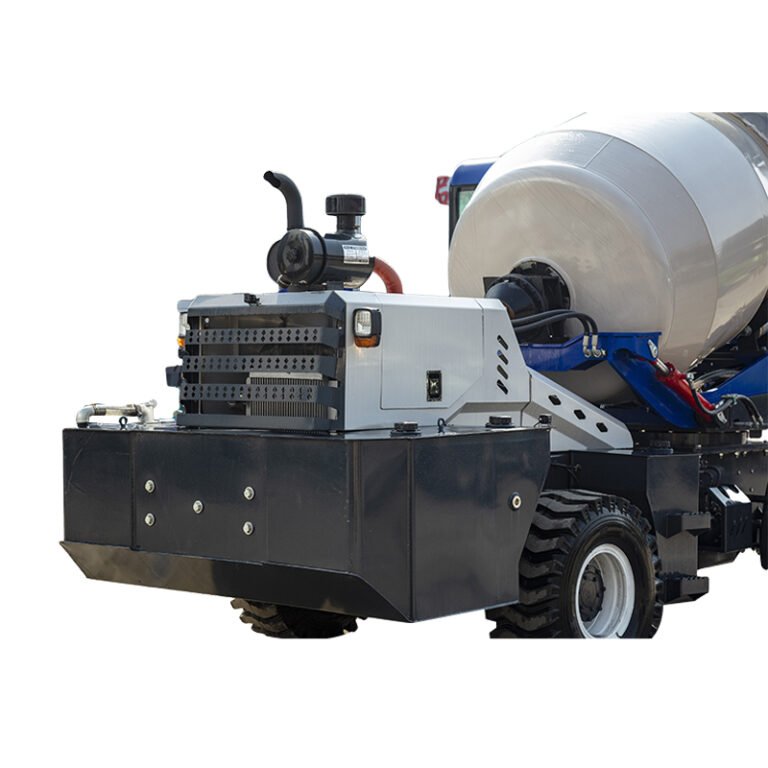

Chassis ConfigurationsDiesel Engine77.3KW, YUCHAI superchargered engine
Emission StandardEuro-2
Transmission4 forward+4 reverse
JBJ-278 power shift gearbox
Max. Driving Speed35km/h
Max. Climbing Angle40°
Min. Ground Clearance280mm
CabinClosed cab, A/C, comfortable seat
Chassis StructureArticulated
AxleWheel speed reducer, special-purpose for mixer truck
Driving&Steering4-Wheel drive (4x4), hydraulic articulated steering
Wheelbase2400
Tyre16/70-20, 4 pcs
Fuel Tank Volume120L
Engine Oil Volume13L
Hydraulic SystemReducer3F-130K
MotorBMS-200
Hydraulic Oil Tank Volume120L
Water Supply SystemSupply ModeTime relay
Water PumpHydraulic water pump&electric water pump
Water Tank Volume750L
Body Color OptionCustomizable colors

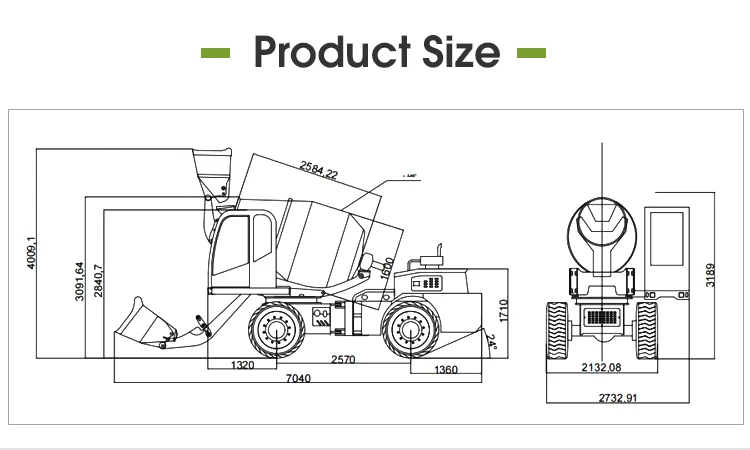

Overall Dimension7040×2733×3189mm
Weight6200kg
OEM
ODM
Delivery Time15 days
Packing&Transportation20'ft container/unit
Warranty12 months

The Efficient Concrete Mixer Cart is a practical and high-performance construction machine designed to integrate loading, mixing, transporting, and discharging concrete in one compact unit. It is widely used in modern construction projects where efficiency, mobility, and cost savings are essential.

This equipment eliminates the need for multiple machines such as wheel loaders, traditional mixers, and transport trucks, making it an ideal solution for small to medium-sized construction sites.

Key Features

All-in-One Functionality
The concrete mixer cart combines automatic loading, precise mixing, convenient transportation, and fast unloading. This integrated design greatly improves construction efficiency and reduces labor requirements.

High Efficiency Operation
With a powerful engine and stable hydraulic system, the machine ensures continuous and uniform concrete production. It delivers consistent mixing quality, improving the strength and durability of the final concrete.

Flexible Discharge System
Equipped with a 270-degree rotating drum or discharge system, the mixer allows multi-angle unloading. This makes it suitable for different working environments and construction layouts.

Strong Mobility
Designed with durable tires and a compact structure, the mixer cart can easily operate on rough roads, uneven terrain, and narrow job sites. It is especially suitable for remote or rural construction areas.

Cost-Effective Solution
By replacing several separate machines, the concrete mixer cart significantly reduces equipment investment, fuel consumption, and labor costs. It offers excellent value for contractors seeking efficient construction solutions.

Applications

  • Residential and commercial building projects
  • Road and bridge construction
  • Rural infrastructure development
  • Small and medium construction sites
  • Remote or off-road engineering projects

Advantages

  • Saves time and labor
  • Reduces equipment costs
  • Improves concrete quality consistency
  • Easy to operate and maintain
  • Suitable for complex working environments

Conclusion

The Efficient Concrete Mixer Cart is a reliable and versatile solution for modern construction needs. Its integrated design, strong performance, and cost-saving advantages make it an essential machine for contractors who want to improve productivity and reduce operational complexity.

Hc9d7e1df51c84dd38a91abce9d936dc7m
He126ac87678c4396b4fea53c3c049101r
Hcb67aeff43384f35bcffce41fe89ad65c

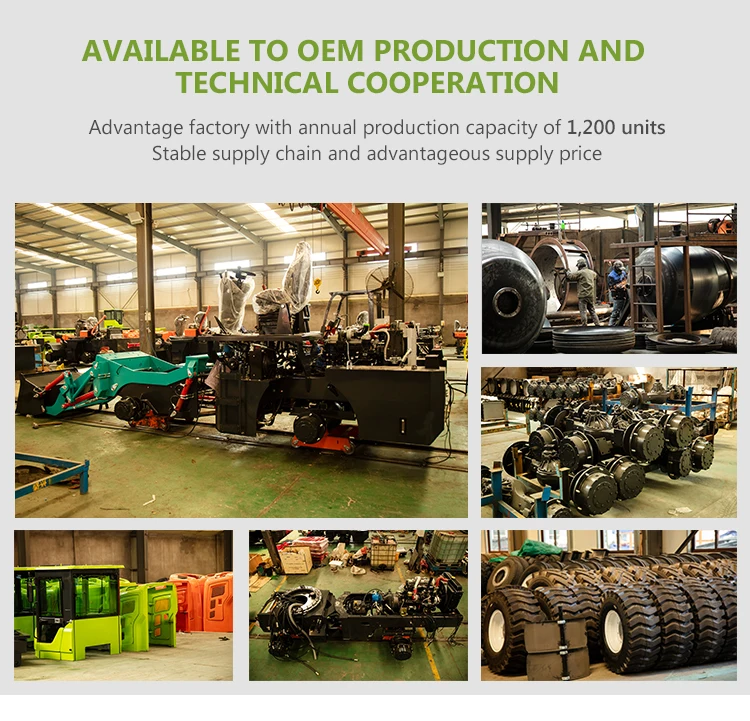

H51e4c4737a9b4fd4a9f95f2a6070e0ffE
