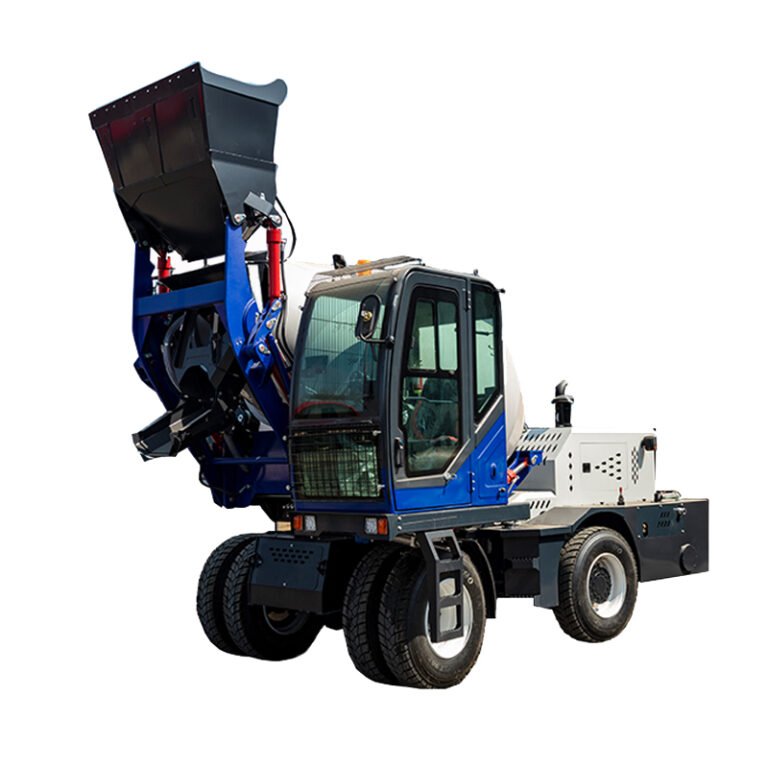

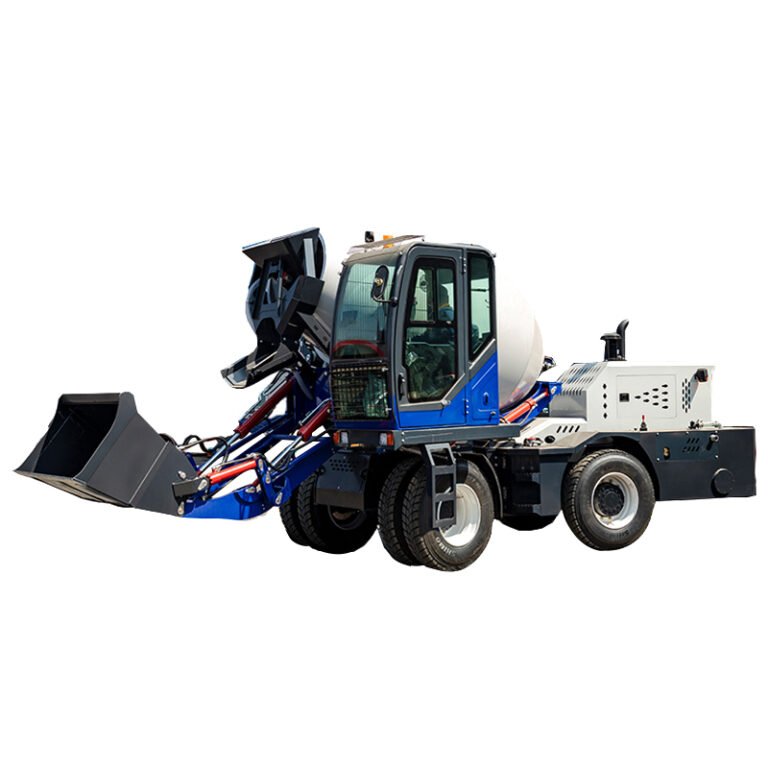

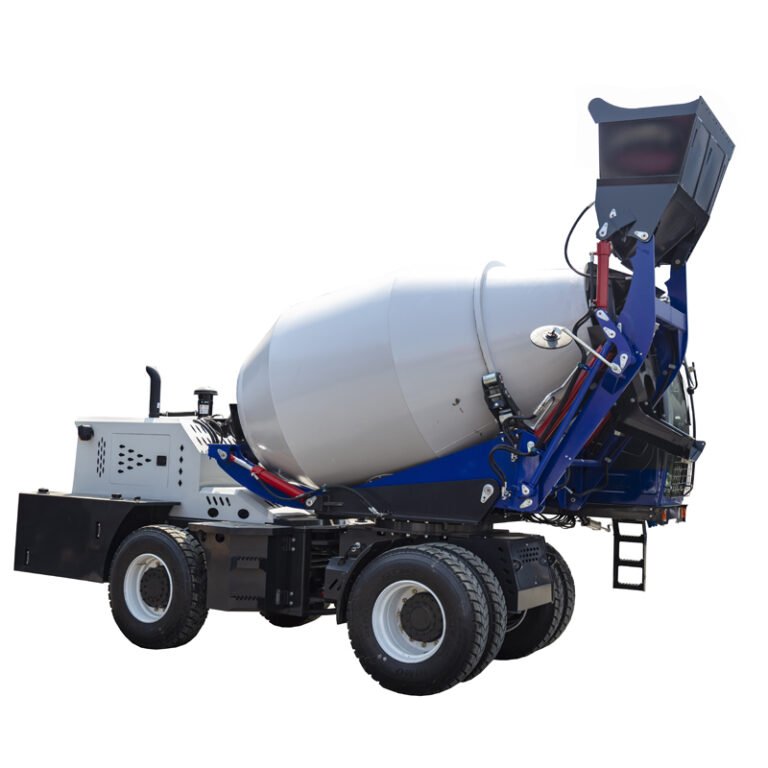

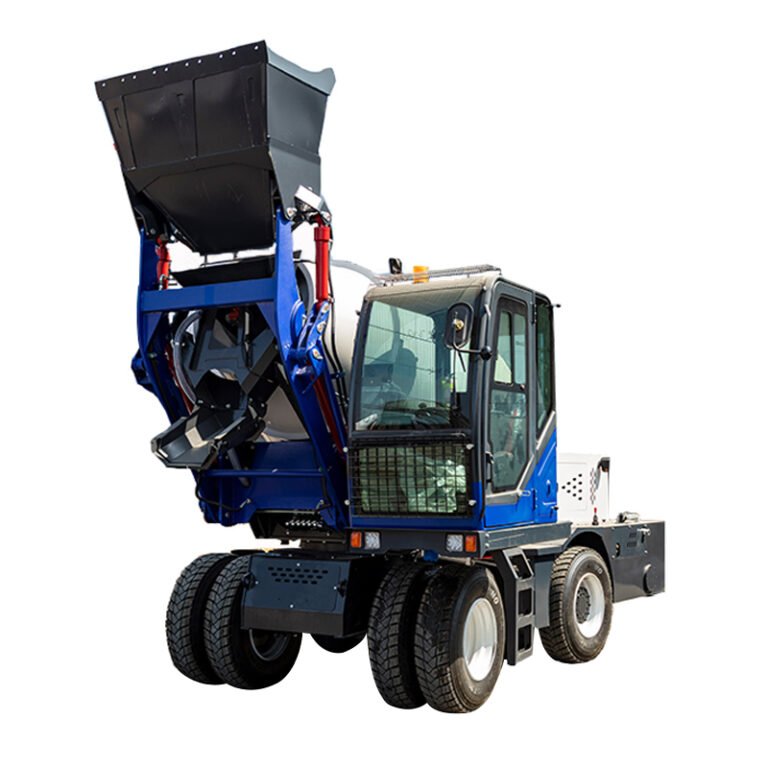

You can be confident in purchasing a concrete mixer truck. The Self-Loading Concrete Mixer is a unique vehicle that combines a concrete mixer, a transit mixer, and a wheel loader. The productivity of the mixer is 22 cubic meters per hour. The driven axle with wheel reduction gear and a fully hydraulic transmission system allow the mixer truck to operate on any rough off-road terrain. The maximum travel speed can reach 42 km/h, and the minimum turning radius is only 6.2 meters.

Functions

1. The mixer is equipped with an imported Sunny hydraulic system and a WEICHAI turbocharged engine with 92 kW power. The standard configuration includes a high-pressure water washing device, driving cabin, automatic water feeding and batching system, hydraulic suction pump, cooling pump, etc., as well as heating and air-conditioning, electronic weighing system, imported piston motor, etc.
2. The driver’s cabin is located at the front and can rotate together with the drum base by 270 degrees, allowing bidirectional driving.
3. The Self-Loading Concrete Mixer can rotate 220 degrees to discharge concrete to a height of more than 2.0 m on all four sides of the machine. The drum can also be lifted 20 degrees from below by two hydraulic cylinders for easier unloading of concrete.
4. The drum rotation speed reaches 20 rpm, improving working efficiency by 30% compared to competitors in the industry.
5. The use of a wet brake front axle, pneumatic brake system, dual braking system, and dual front tires improves the safety and stability of the mixer truck.
6. Full-load capability and a 45% climbing ability allow our mixer to take a leading position in the industry.
7. The external water pump is equipped with a water suction switch, which allows water to be filled into the water tank and drum separately.

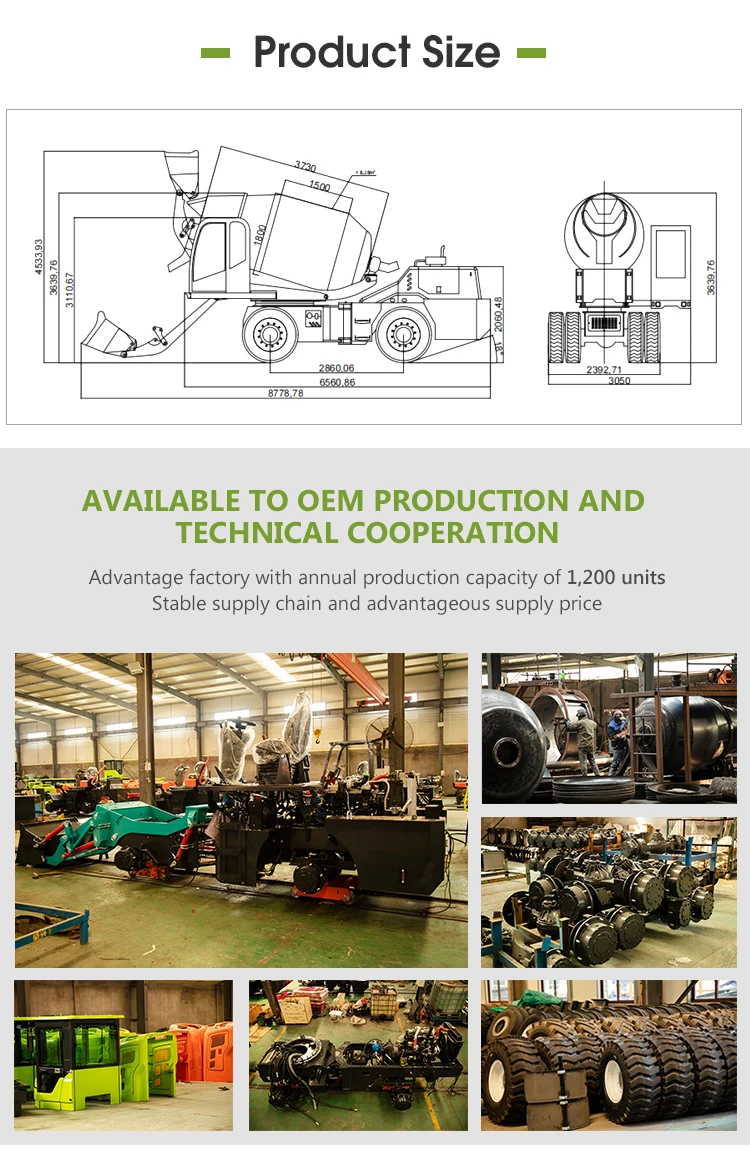

8. The vehicle size is compact, making it suitable for limited working environments.
