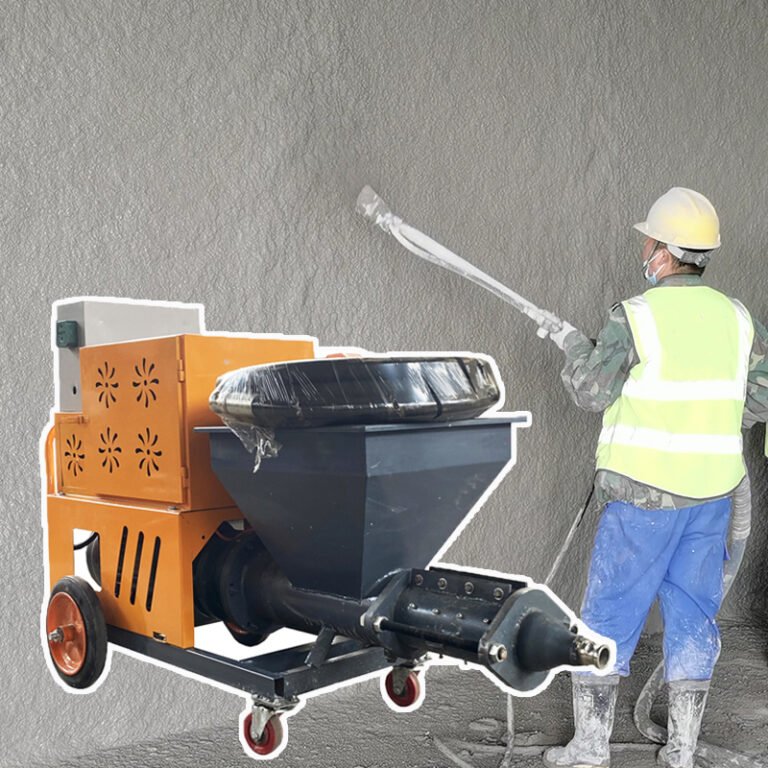

Small Mortar Spraying Machine for Faster Wall Plastering

Small Mortar Spraying Machine is a compact and efficient construction tool designed for fast and even mortar application. It helps improve wall plastering efficiency, reduce labor intensity, and ensure smooth and consistent surface finishing. Suitable for both wall decoration and ground leveling, it delivers reliable performance for various construction needs.

Model	CH311	CH511	CH711
Conveying Capacity	3m³/h	4m³/h	6m³/h
Spraying Efficiency	130㎡/h	200㎡/h	200㎡/h
Max. Horizontal Conveying Distance	20m	30m	40m
Max. Vertical Conveying Distance	12m	18m	25m
Working Pressure	5-8MPa	5-8MPa	7-8MPa
Motor Power	4kw	7.5kw	7.5kw
Voltage	220V/380V	220V/380V	380V
Air compressor Power	2.2kw	2.2kw	1.5*2kw
Max.Aggregate Dia.	4mm	4mm	7mm
Conveying Hose Dia.	32mm	32mm/38mm	38mm
Aggregate Application	Mortar, putty, real stone paint, fireproof materials, grouting
Fitting Configuration	High-pressure hose:10 meter Spraying gun:1 pcs with 4 spraying nozzles
Weight	150kg	300kg	360kg
Dimension	1600450950mm	17006001100mm	18006001100mm

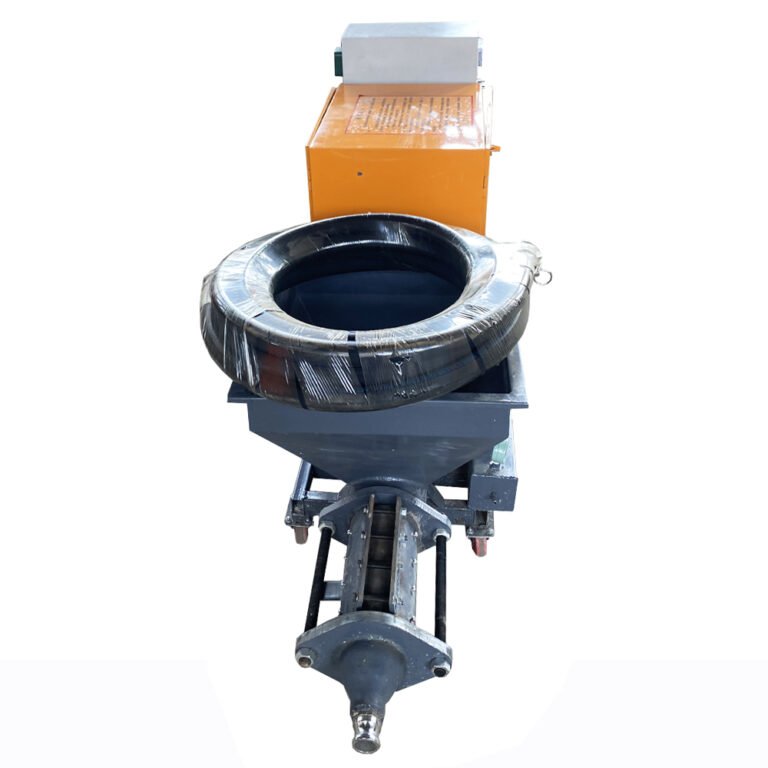

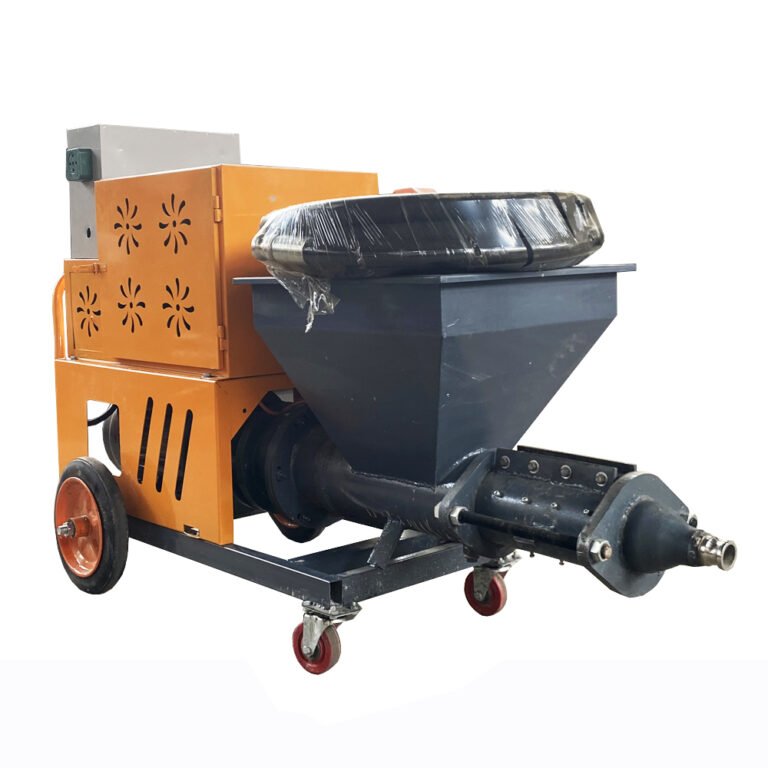

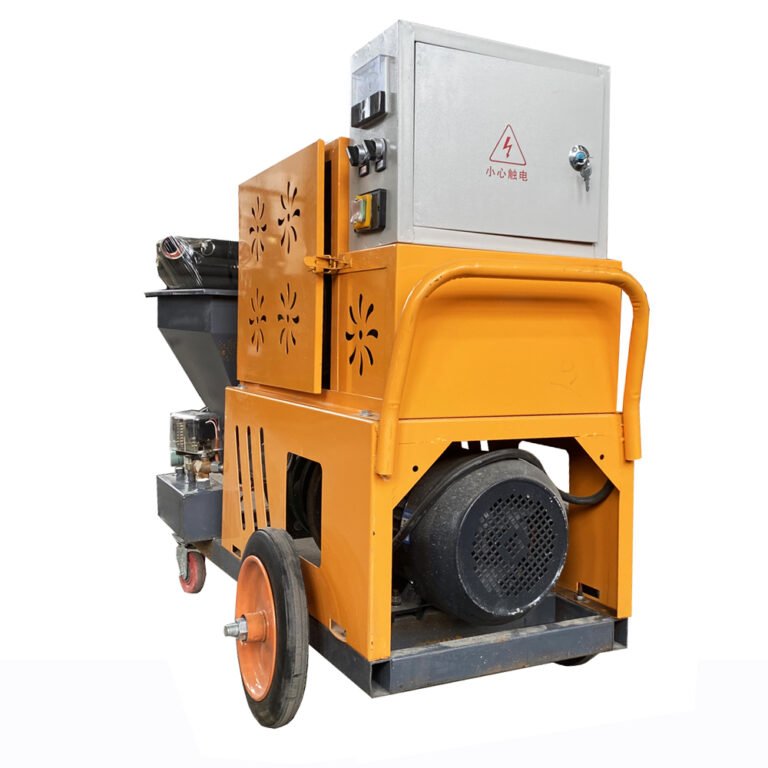

Small Mortar Spraying Machine

Efficient Mortar Application: This small mortar spraying machine is designed to speed up wall plastering and surface finishing, helping construction projects save time and labor while improving work quality.

Versatile Construction Uses:
① Wall Plastering: Apply mortar evenly and quickly on walls for a smooth, professional finish.
② Ground Leveling & Surface Preparation: Ideal for leveling floors or preparing surfaces, ensuring uniform and aesthetically pleasing results.

Working Principle: The motor drives the pump shaft to rotate. The screw rotates around its axis while moving along the inner surface of the sleeve, forming a sealed pump chamber. Each rotation moves the mortar forward step by step. Continuous rotation pushes the material in a spiral from chamber to chamber and then out of the pump housing, delivering consistent and reliable spraying.

Portable & Durable: Lightweight and easy to transport, this machine is perfect for both indoor and outdoor construction projects. Its sturdy design ensures long-term performance and stable operation under demanding conditions.
